CaseIH Steiger 550 vs Challenger MT945B
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.
CaseIH Steiger 550
Category: Farm
Challenger MT945B
Category: Farm
Decisive Performance Differentials
- CaseIH Steiger 550 provides +120 PTO HP more implement shaft power
- CaseIH Steiger 550 provides +4,780 lbs more unballasted traction mass
- Challenger MT945B provides +1.5 gpm higher base hydraulic flow (+3.6%)
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison

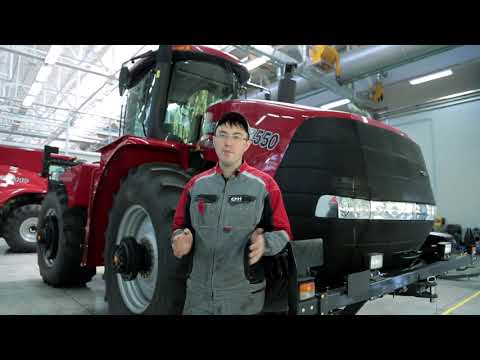

Dual Field Action & Powertrain Sound
Side-by-side operational field footage verified with computer vision & acoustic audits.
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | CaseIH Steiger 550 | Challenger MT945B | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 550 HP | 430 HP | - |
PTO Horsepower (Tested) | 536.3 HP | 416.3 HP | +28.8%+120 PTO HP (+28.8%) |
Traction Density Ratio | 12.5 HP/1k lbs | 11 HP/1k lbs | 12.5 vs 11 HP / 1,000 lb (higher transport agility) |
| Dimensions & Weight | |||
Base Operating Weight | 44,046 lbs | 39,266 lbs | +12.2%+4,780 lbs heavier |
| Engine Specs | |||
Displacement | 12.9 L | 15.1 L | +2.2L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Hydraulics & Implements | |||
Standard Hydraulic Pump Flow | 42 gpm | 43.5 gpm | +3.6%+1.5 gpm flow |
Rear SCV Remotes (Standard) | 4 Valves | 4 Valves | Tie |
3-Point Hitch Category | Category 4N | Category IVN/III Opt Optional | - |
| Chassis & Drivetrain | |||
Drive Configuration | 4WD | 4WD | - |
Transmission System | full power shift | full power shift | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
CaseIH delivers higher base frame ballast (+4,780 lbs) to minimize tire wheel slip under deep draft implement drag.
Large-Scale Air Seeding & Hydraulic Drills
Challenger leads with enhanced hydraulic pump capacity (43.5 gpm, +1.5 gpm advantage), preventing hydraulic oil overheating on wide vacuum seeders.
Road Hauling & Grain Cart Chase Duty
CaseIH Steiger 550 has a sharper 12.49 HP/1,000 lb power-to-weight ratio for rapid hill-climbing acceleration with loaded grain carts.
Soil Compaction & Wet Ground Flotation
Challenger MT945B features a lighter footprint (-4,780 lbs), mitigating subsoil compaction and preserving soil porosity.
Both machines demonstrate balanced engineering trade-offs in this equipment class. Base final fleet acquisition on local dealer servicing support, operator ergonomics, and implement compatibility.
Decision Analysis & Editorial Verdict
Both CaseIH Steiger 550 and Challenger MT945B are remarkably well-matched within this power bracket. The decisive purchasing decision should focus on dealer proximity, local service network reputation, hydraulic circuit options, and implement hitch requirements.
