Deere 8R 410 vs CaseIH Magnum 380
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.

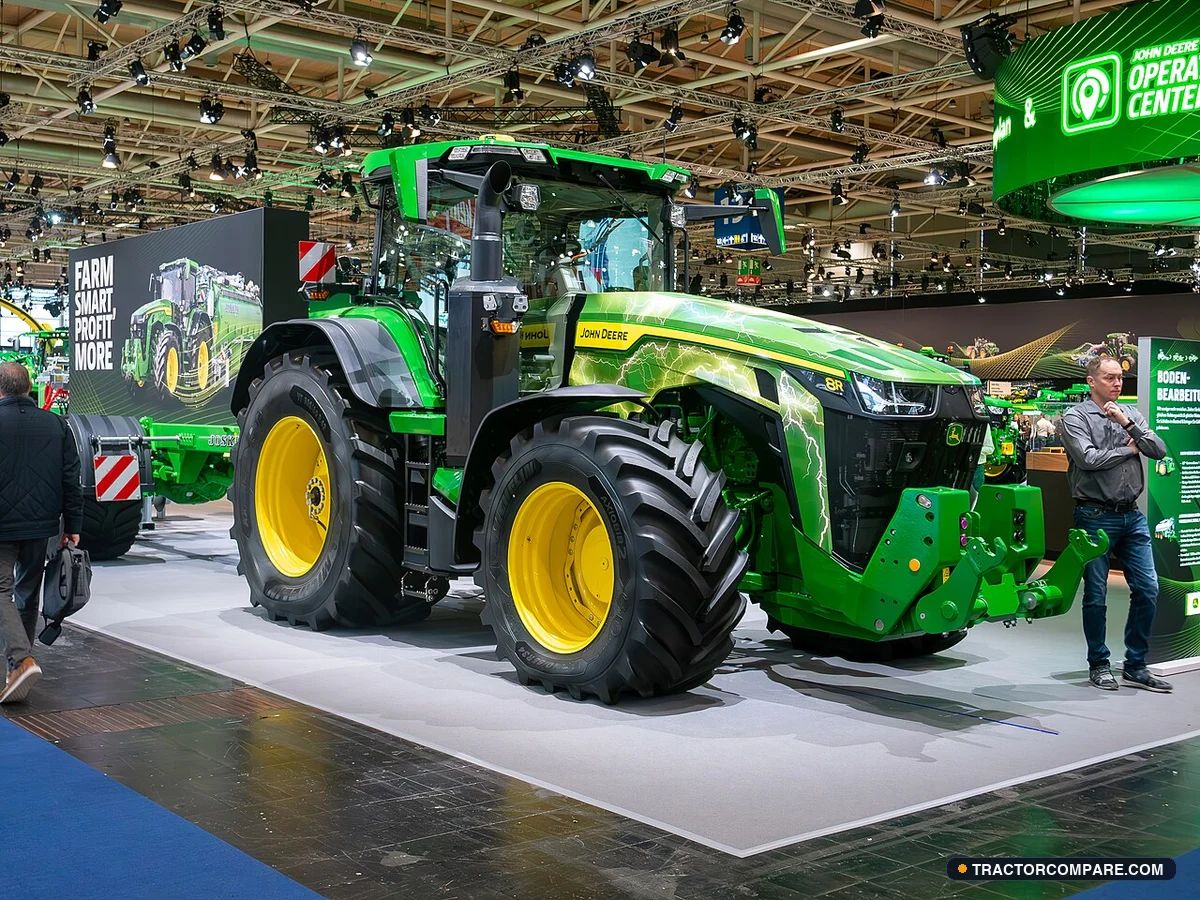

Deere 8R 410
Category: Farm • Production: 2019 -
CaseIH Magnum 380
Category: Farm
Decisive Performance Differentials
- Deere 8R 410 delivers +30 HP higher rated engine output (+7.9%)
- Deere 8R 410 provides +11.7 PTO HP more implement shaft power
- Deere 8R 410 provides +16 gpm higher base hydraulic flow (+36.4%)
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison
Dual Field Action & Powertrain Sound
Side-by-side operational field footage verified with computer vision & acoustic audits.
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | Deere 8R 410 | CaseIH Magnum 380 | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 410 HP | 380 HP | +7.9%+30 HP (+7.9%) |
PTO Horsepower (Tested) | 384.1 HP | 372.4 HP | +3.1%+11.7 PTO HP (+3.1%) |
Traction Density Ratio | N/A | 11.8 HP/1k lbs | - |
| Dimensions & Weight | |||
Base Operating Weight | N/A | 32,200 lbs | - |
| Engine Specs | |||
Displacement | 9 L | 8.7 L | +0.3L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Hydraulics & Implements | |||
Standard Hydraulic Pump Flow | 60 gpm | 44 gpm | +36.4%+16 gpm flow |
Rear SCV Remotes (Standard) | 4 Valves | 4 Valves | Tie |
3-Point Hitch Category | Category IIIN | Category III/IVN | - |
| Chassis & Drivetrain | |||
Drive Configuration | 4WD | 4WD | - |
Transmission System | full power shift | continuously variable transmission (CVT) | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
Comparative draft ballast analysis is unavailable due to missing unballasted operating weight specifications on one or both tractors.
Large-Scale Air Seeding & Hydraulic Drills
Deere offers continuous high-capacity hydraulic flow (60 gpm, +16 gpm advantage), effortlessly sustaining fan motors and down-pressure circuits simultaneously.
Road Hauling & Grain Cart Chase Duty
Insufficient operating weight or horsepower records to compute comparative road transport traction agility.
Soil Compaction & Wet Ground Flotation
Chassis weight data missing on one or both units; ground footprint contact pressure cannot be responsibly determined.
Deere 8R 410 holds a verified rated horsepower lead (410 HP vs 380 HP). However, essential operating ballast or auxiliary hydraulic pump ratings remain unrecorded for a definitive overall workload recommendation. Consult OEM dealer build sheets before pairing with demanding implements.
Decision Analysis & Editorial Verdict
John Deere 8R 410 commands higher peak rated horsepower and deep telemetry integration; Case IH Magnum 380 provides proven CVXDrive reliability and stable drawbar pull across variable soil conditions.
Optimal Operational Use Cases
The 2020s row-crop flagship showdown — Deere’s autonomous-ready 8R against Case IH’s proven Magnum platform.
🏆 Verdict
Deere 8R 410 wins on autonomy and software ecosystem — Deere’s 2024 announcement of autonomous 8R 410 tillage at CES established them as the technology leader. JD Operations Center + AutoTrac + JD Sync integration provides the most complete software platform in the industry.
Case IH Magnum 380 wins on drivetrain refinement — the CVXDrive CVT is smoother and more fuel-efficient than Deere’s e23 PowerShift in many field operations. Magnum’s Hi-eSCR aftertreatment (no EGR, no DPF) has lower parasitic loss.
💡 Key Insight: As of 2024, only the Deere 8R 410 offers commercial L4 autonomous tillage. CNH Industrial (Case IH parent) is catching up through the Raven autonomy acquisition, but remains 1–2 years behind Deere.
🎯 Best Use Cases
- Choose Deere 8R 410 if: you want the most advanced autonomy capability, the deepest precision-ag ecosystem, and the largest dealer network in North America.
- Choose Case IH Magnum 380 if: you prefer CVT drivetrain refinement, simpler SCR-only emissions, and competitive dealer financing.
📚 References & Sources
[^1]: John Deere Tractors. https://www.deere.com/en/tractors/ [^2]: Case IH Magnum Tractors. https://www.caseih.com/en-us/unitedstates/products/tractors [^3]: Nebraska Tractor Test Lab. https://tractortestlab.unl.edu/test-search [^4]: Wikipedia — John Deere 8R. https://en.wikipedia.org/wiki/John_Deere_8R
- https://www.deere.com/en/tractors/
- https://www.caseih.com/en-us/unitedstates/products/tractors
- https://tractortestlab.unl.edu/test-search
- https://en.wikipedia.org/wiki/John_Deere_8R
