CaseIH Steiger 535 vs Deere 9400
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.
CaseIH Steiger 535
Category: Farm

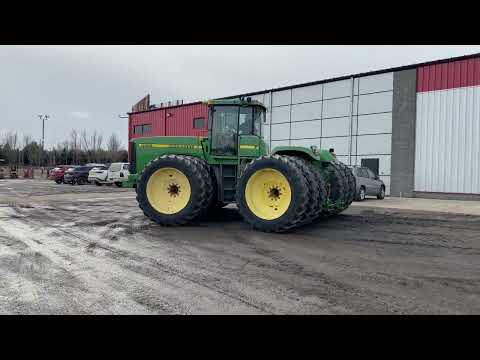

Deere 9400
Category: Farm
Decisive Performance Differentials
- CaseIH Steiger 535 provides +160.7 PTO HP more implement shaft power
- Deere 9400 provides +2 gpm higher base hydraulic flow (+4.8%)
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison
Dual Field Action & Powertrain Sound
Side-by-side operational field footage verified with computer vision & acoustic audits.
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | CaseIH Steiger 535 | Deere 9400 | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 535 HP | 425 HP | - |
PTO Horsepower (Tested) | 473 HP | 312.3 HP | +51.5%+160.7 PTO HP (+51.5%) |
Traction Density Ratio | 12.6 HP/1k lbs | N/A | - |
| Dimensions & Weight | |||
Base Operating Weight | 42,639 lbs | N/A | - |
| Engine Specs | |||
Displacement | 15 L | 12.5 L | +2.5L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Hydraulics & Implements | |||
Standard Hydraulic Pump Flow | 42 gpm | 44 gpm | +4.8%+2 gpm flow |
Rear SCV Remotes (Standard) | 4 Valves | 2 Valves | +2 extra standard remote circuits |
3-Point Hitch Category | Category 4N | Category III | - |
| Chassis & Drivetrain | |||
Drive Configuration | 4WD | 4WD | - |
Transmission System | full power shift | partially synchronized | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
Comparative draft ballast analysis is unavailable due to missing unballasted operating weight specifications on one or both tractors.
Large-Scale Air Seeding & Hydraulic Drills
Deere leads with enhanced hydraulic pump capacity (44 gpm, +2 gpm advantage), preventing hydraulic oil overheating on wide vacuum seeders.
Road Hauling & Grain Cart Chase Duty
Insufficient operating weight or horsepower records to compute comparative road transport traction agility.
Soil Compaction & Wet Ground Flotation
Chassis weight data missing on one or both units; ground footprint contact pressure cannot be responsibly determined.
CaseIH Steiger 535 holds a verified rated horsepower lead (535 HP vs 425 HP). However, essential operating ballast or auxiliary hydraulic pump ratings remain unrecorded for a definitive overall workload recommendation. Consult OEM dealer build sheets before pairing with demanding implements.
Decision Analysis & Editorial Verdict
Both CaseIH Steiger 535 and Deere 9400 are remarkably well-matched within this power bracket. The decisive purchasing decision should focus on dealer proximity, local service network reputation, hydraulic circuit options, and implement hitch requirements.
