AGCO 8425 vs CaseIH Steiger 540 Quadtrac
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.
AGCO 8425
Category: Farm
CaseIH Steiger 540 Quadtrac
Category: Farm
Decisive Performance Differentials
- CaseIH Steiger 540 Quadtrac provides +19,480 lbs more unballasted traction mass
- CaseIH Steiger 540 Quadtrac provides +8 gpm higher base hydraulic flow (+29.6%)
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison
Dual Field Action & Powertrain Sound

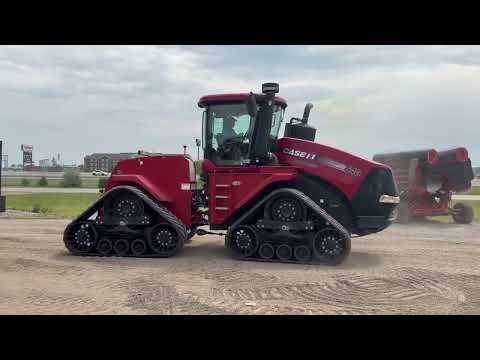

Side-by-side operational field footage verified with computer vision & acoustic audits.
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | AGCO 8425 | CaseIH Steiger 540 Quadtrac | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 425 HP | 535 HP | - |
PTO Horsepower (Tested) | N/A | 473 HP | - |
Traction Density Ratio | 15 HP/1k lbs | 11.2 HP/1k lbs | 15 vs 11.2 HP / 1,000 lb (higher transport agility) |
| Dimensions & Weight | |||
Base Operating Weight | 28,300 lbs | 47,780 lbs | +68.8%+19,480 lbs heavier |
| Engine Specs | |||
Displacement | 12.7 L | 12.9 L | +0.2L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Hydraulics & Implements | |||
Standard Hydraulic Pump Flow | 27 gpm | 35 gpm | +29.6%+8 gpm flow |
Rear SCV Remotes (Standard) | 4 Valves | 4 Valves | Tie |
3-Point Hitch Category | Standard Hitch | Category IVN | - |
| Chassis & Drivetrain | |||
Drive Configuration | 4WD | Tracks (4-Track) | - |
Transmission System | partially synchronized | full power shift | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
CaseIH commands superior frame weight (+19,480 lbs) for continuous draft traction in heavy gumbo soils.
Large-Scale Air Seeding & Hydraulic Drills
CaseIH leads with enhanced hydraulic pump capacity (35 gpm, +8 gpm advantage), preventing hydraulic oil overheating on wide vacuum seeders.
Road Hauling & Grain Cart Chase Duty
AGCO 8425 has a sharper 15.02 HP/1,000 lb power-to-weight ratio for rapid hill-climbing acceleration with loaded grain carts.
Soil Compaction & Wet Ground Flotation
AGCO 8425 features a lighter footprint (-19,480 lbs), reducing deep subsoil compaction during damp spring planting windows.
Select CaseIH Steiger 540 Quadtrac for superior tractive frame ballast and engine power reserves and hydraulic flow capacity across evaluated field tasks.
Decision Analysis & Editorial Verdict
CaseIH Steiger 540 Quadtrac holds the specification edge across verified benchmark criteria, led by higher rated horsepower. Consider Steiger 540 Quadtrac for demanding high-capacity field duties, while AGCO 8425 provides a competitive footprint for alternative duty cycles.
