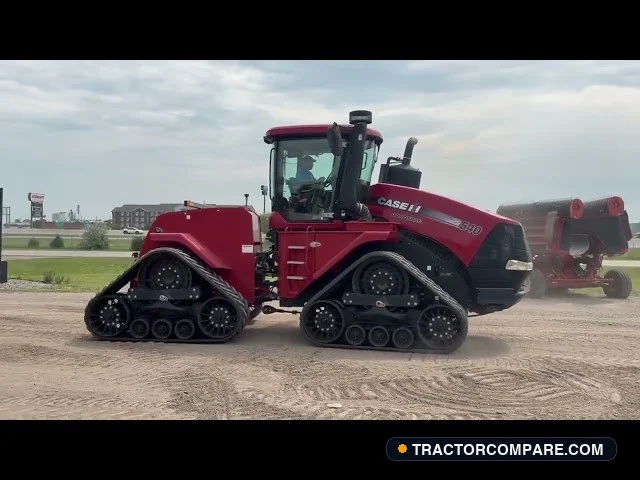

CaseIH Steiger 540 Quadtrac
CaseIH Steiger 540 Quadtrac delivers 535 HP. Top 24% powerhouse in Farm class. High ballast / heavy traction ballast (Pulling powerhouse)
TRACTORCOMPARE.COM
Category Benchmark Standing & Percentiles
Relative performance compared against all 9,935 models in the Farm equipment category.
Engine Horsepower Rating
535 HPTop 24%
MinMedian: 68.6 HPClass Max: 960 HP
Power-to-Weight Traction Density11.2 HP / 1,000 lb
High ballast / heavy traction ballast (Pulling powerhouse)
Operating Mass: 47,780 lbs
Hydraulic Pump Flow Capacity35 gpm
Exceeds the 16.5 gpm category median for modern hydraulic implements.
Category Median: 16.5 gpm
Top Rivals to Compare Head-to-Head
Frequently cross-shopped tractors with comparable power and application scope.
AGCO
Launch Battle vs 8425 →AGCO 8425
Power: 425 HP•Weight: 28,300 lbs
Challenger
Launch Battle vs MT743 →Challenger MT743
Power: 425 HP•Weight: 33,443 lbs
Deere
Launch Battle vs 9400 →Deere 9400
Power: 425 HP•Weight: N/A
Complete Machine Specifications
Engine & Mechanics
Rated Horsepower535 HP
ModelFPT
Typetwo-stage turbocharged air-to-water intercooled air-to-air aftercooled diesel
Cylinders6
Displacement12.9 L
Drivetrain & Transmission
Drive TypeTracks (4-Track)
Transmissionfull power shift
Forward Gears16
Reverse Gears2
Hydraulics & Dimensions
Pump Flow (Standard)35 gpm
Base Shipping Weight47,780 lbs
Wheelbase154 in
Nebraska TestStandard Factory
