Deere 4020 vs International Harvester 806
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.
Deere 4020
Category: Farm

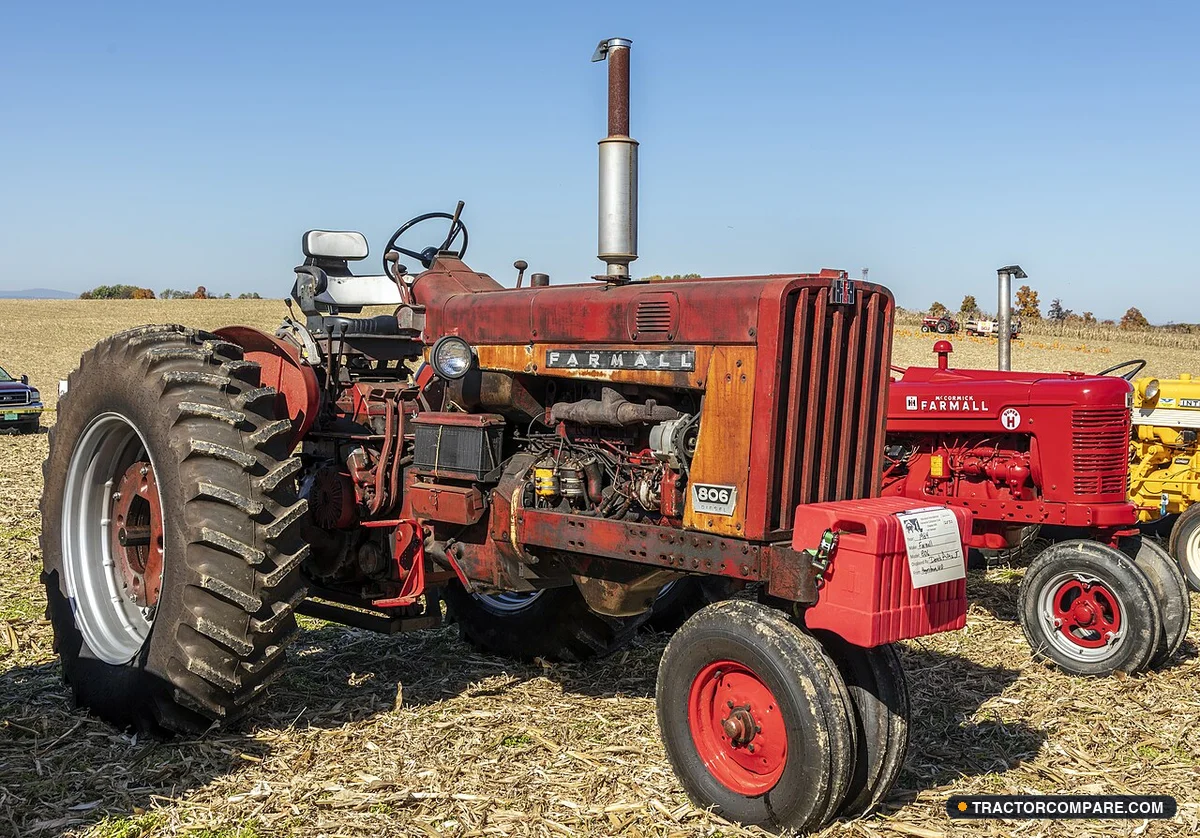

International Harvester 806
Category: Farm
Decisive Performance Differentials
- International Harvester 806 provides +6 gpm higher base hydraulic flow (+33.3%)
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | Deere 4020 | International Harvester 806 | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 101 HP | 105 HP | - |
PTO Horsepower (Tested) | 95.8 HP | 94.9 HP | Tie |
Traction Density Ratio | N/A | 12.4 HP/1k lbs | - |
| Dimensions & Weight | |||
Base Operating Weight | N/A | 8,460 lbs | - |
| Engine Specs | |||
Displacement | 5.9 L | 4.9 L | +1L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Hydraulics & Implements | |||
Standard Hydraulic Pump Flow | 18 gpm | 24 gpm | +33.3%+6 gpm flow |
Rear SCV Remotes (Standard) | 1 Valves | Optional / Standard | - |
3-Point Hitch Category | Category II | Category II | - |
| Chassis & Drivetrain | |||
Drive Configuration | 2WD | Unknown | - |
Transmission System | partially synchronized | unsynchronized | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
Comparative draft ballast analysis is unavailable due to missing unballasted operating weight specifications on one or both tractors.
Large-Scale Air Seeding & Hydraulic Drills
International Harvester leads with enhanced hydraulic pump capacity (24 gpm, +6 gpm advantage), preventing hydraulic oil overheating on wide vacuum seeders.
Road Hauling & Grain Cart Chase Duty
Insufficient operating weight or horsepower records to compute comparative road transport traction agility.
Soil Compaction & Wet Ground Flotation
Chassis weight data missing on one or both units; ground footprint contact pressure cannot be responsibly determined.
International Harvester 806 holds a verified rated horsepower lead (105 HP vs 101 HP). However, essential operating ballast or auxiliary hydraulic pump ratings remain unrecorded for a definitive overall workload recommendation. Consult OEM dealer build sheets before pairing with demanding implements.
Decision Analysis & Editorial Verdict
John Deere 4020 set the industry benchmark with Syncro-Range / Power Shift shifting and resale value; IH 806 countered with robust torque reserve, higher hydraulic remote flow, and exceptional drawbar pull.
Optimal Operational Use Cases
The defining 1960s row-crop showdown — Deere’s flagship against IH’s counterpuncher. Both tractors are considered icons of agricultural engineering.
🏆 Verdict
John Deere 4020 wins overall — primarily on the basis of its enormous production volume (over 180,000 units across 7 model years), industry-best aftermarket support, and the Deere dealer network’s ubiquity in the North American row-crop belt. The 4020 became the template for the modern row-crop tractor form factor that subsequent generations followed.
IH 806 wins on torque character — its Torque Amplifier (a 2-speed planetary gearset between transmission and final drive, allowing on-the-go shifting under load) was a more sophisticated drivetrain design than the Deere Syncro-Range. Operators praised the 806’s smooth shifting under load.
🎯 Best Use Cases
- Choose Deere 4020 if: you want parts availability today, broad aftermarket support, and a tractor that’s well-documented across restoration communities.
- Choose IH 806 if: you prefer the original-equipment fit-and-finish, want the Torque Amplifier’s load-shifting capability, and have a local IH heritage shop.
📜 Historical Context
The 4020 and 806 represent two different design philosophies:
- Deere 4020: developed from the ground up as a clean-sheet design under Deere engineer Melvin Brundage. Defined the modern row-crop form factor.
- IH 806: evolved from the 706 / 756 platform; refined existing architecture rather than redesigning. Featured the Torque Amplifier (an IH exclusive in this era).
Nebraska Tractor Test records:
- Deere 4020: Test #849 (1963) and #885 (1965)
- IH 806: Test #786 (1963)
📚 References & Sources
[^1]: Wikipedia — John Deere 4020. https://en.wikipedia.org/wiki/John_Deere_4020 [^2]: Nebraska Tractor Test Lab — Test Search. https://tractortestlab.unl.edu/test-search [^3]: TractorData. https://www.tractordata.com/ [^4]: Farm Collector Magazine. https://www.farmcollector.com/
- https://en.wikipedia.org/wiki/John_Deere_4020
- https://tractortestlab.unl.edu/test-search
- https://www.tractordata.com/
- https://www.farmcollector.com/
