Case 3294 vs Challenger MT745
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.

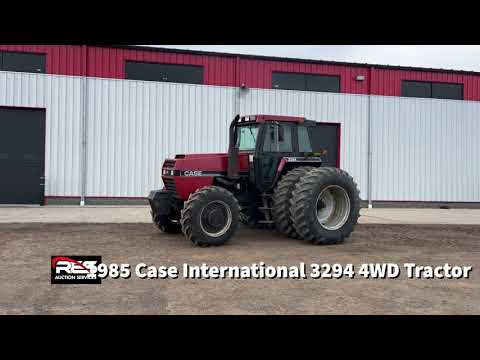

Case 3294
Category: Farm
Challenger MT745
Category: Farm
Decisive Performance Differentials
- Challenger MT745 provides +73.6 PTO HP more implement shaft power
- Challenger MT745 provides +11,195 lbs more unballasted traction mass
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison
Dual Field Action & Powertrain Sound
Side-by-side operational field footage verified with computer vision & acoustic audits.
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | Case 3294 | Challenger MT745 | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 197 HP | 255 HP | - |
PTO Horsepower (Tested) | 162.6 HP | 236.2 HP | +45.3%+73.6 PTO HP (+45.3%) |
Traction Density Ratio | 11.6 HP/1k lbs | 9 HP/1k lbs | 11.6 vs 9 HP / 1,000 lb (higher transport agility) |
| Dimensions & Weight | |||
Base Operating Weight | 17,000 lbs | 28,195 lbs | +65.9%+11,195 lbs heavier |
| Engine Specs | |||
Displacement | 8.3 L | 8.8 L | +0.5L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Hydraulics & Implements | |||
Standard Hydraulic Pump Flow | N/A (Check Option Pack) | 43.5 gpm | - |
Rear SCV Remotes (Standard) | 2 Valves | 4 Valves | +2 extra standard remote circuits |
3-Point Hitch Category | Category 3/2 | Category III | - |
| Chassis & Drivetrain | |||
Drive Configuration | 4WD | Tracks (Crawler) | - |
Transmission System | three-speed power shift | full power shift | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
Challenger commands superior frame weight (+11,195 lbs) for continuous draft traction in heavy gumbo soils.
Large-Scale Air Seeding & Hydraulic Drills
Dedicated remote circuit hydraulic flow ratings are incomplete. Direct comparative seeding capacity requires dealer-verified option build sheets.
Road Hauling & Grain Cart Chase Duty
Case 3294 has a sharper 11.59 HP/1,000 lb power-to-weight ratio for rapid hill-climbing acceleration with loaded grain carts.
Soil Compaction & Wet Ground Flotation
Case 3294 features a lighter footprint (-11,195 lbs), reducing deep subsoil compaction during damp spring planting windows.
Select Challenger MT745 for superior tractive frame ballast and engine power reserves across evaluated field tasks.
Decision Analysis & Editorial Verdict
Challenger MT745 holds the specification edge across verified benchmark criteria, led by higher rated horsepower. Consider MT745 for demanding high-capacity field duties, while Case 3294 provides a competitive footprint for alternative duty cycles.
