CaseIH Steiger 480 vs New Holland T9.645 SmartTrax II
Specification differential, power-to-weight analysis, hydraulic benchmarks, and equipment decision guidance.

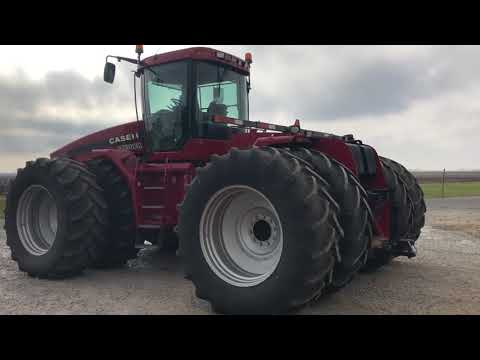

CaseIH Steiger 480
Category: Farm
New Holland T9.645 SmartTrax II
Category: Farm
Decisive Performance Differentials
- CaseIH Steiger 480 provides +5.2 PTO HP more implement shaft power
- New Holland T9.645 SmartTrax II provides +14,085 lbs more unballasted traction mass
Multi-Axis Capability Radar
Normalized 5-pillar operational benchmark comparison
Dual Field Action & Powertrain Sound
Side-by-side operational field footage verified with computer vision & acoustic audits.
Head-to-Head Specification Differential
Side-by-side technical parameters with calculated delta advantage & percent differentials
| Specification | CaseIH Steiger 480 | New Holland T9.645 SmartTrax II | Advantage Delta |
|---|---|---|---|
| Power & Output | |||
Rated Engine Horsepower | 480 HP | 638 HP | - |
PTO Horsepower (Tested) | 483.2 HP | 478 HP | +1.1%+5.2 PTO HP (+1.1%) |
Traction Density Ratio | 10.8 HP/1k lbs | 10.9 HP/1k lbs | Tie |
| Dimensions & Weight | |||
Base Operating Weight | 44,645 lbs | 58,730 lbs | +31.5%+14,085 lbs heavier |
| Engine Specs | |||
Displacement | 14.9 L | 12.9 L | +2L larger displacement |
Cylinders | 6 Cylinders | 6 Cylinders | - |
| Chassis & Drivetrain | |||
Drive Configuration | 4WD | Tracks (4-Track) | - |
Transmission System | full power shift | full power shift | - |
| Hydraulics & Implements | |||
Rear SCV Remotes (Standard) | Optional / Standard | 4 Valves | - |
3-Point Hitch Category | Category IVN | Category IVN Opt Optional | - |
Buyer Decision Export Tools
Export side-by-side data for forums, Excel spreadsheets, or dealer negotiations
Operational Field Verdict Matrix
Algorithmic suitability assessment cross-referencing Nebraska draft tests against four agricultural workloads.
Primary Tillage & Deep Chisel Plowing
New Holland commands superior frame weight (+14,085 lbs) for continuous draft traction in heavy gumbo soils.
Large-Scale Air Seeding & Hydraulic Drills
Dedicated remote circuit hydraulic flow ratings are incomplete. Direct comparative seeding capacity requires dealer-verified option build sheets.
Road Hauling & Grain Cart Chase Duty
Both tractors exhibit matched power-to-weight agility (10.75 vs 10.86 HP/1,000 lb).
Soil Compaction & Wet Ground Flotation
CaseIH Steiger 480 features a lighter footprint (-14,085 lbs), reducing deep subsoil compaction during damp spring planting windows.
Select CaseIH Steiger 480 for superior overall technical balance across evaluated field tasks.
Decision Analysis & Editorial Verdict
CaseIH Steiger 480 holds the specification advantage across verified metrics. For heavy field draft tasks, evaluate Steiger 480; for operations sensitive to operating costs or implement compatibility, New Holland T9.645 SmartTrax II remains a direct benchmark contender.
